Поз.
Артикул
Описание

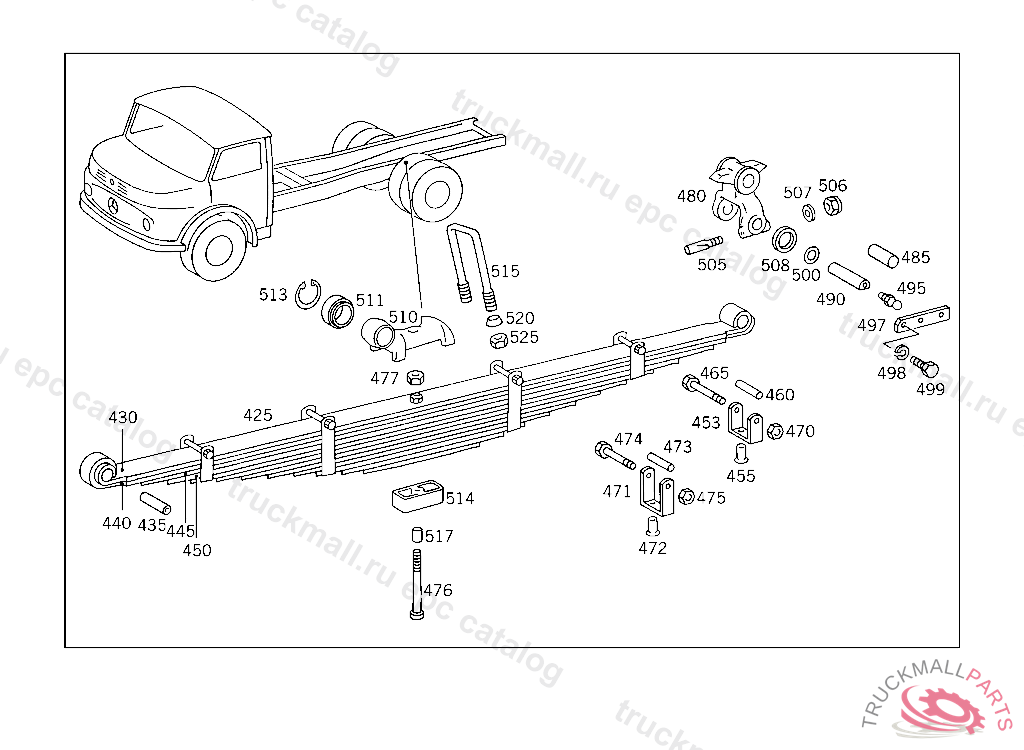

480
SHACKLE REAR SPRING SUSPENSION
480
SHACKLE ,A 006845
485
BUSHING
485
BUSHING
485
BUSHING ,A 006845
490
SHACKLE PIN REAR SPRING TO REAR SPRING FRONT BRACKET
490
SHACKLE PIN , Replaced By: A3855860232
490
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3923257130
490
SHACKLE PIN REAR SPRING TO SPRING SHACKLE, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
490
SHACKLE PIN ,A 006845
495
GREASE NIPPLE PROTECTIVE TUBE
497
LOCK ,A 006845
497
LOCK ,A 006845
498
LOCK WASHER
499
SCREW
500
WASHER SHACKLE PIN, AS REQUIRED 4.0 MM
500
WASHER FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS
505
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
506
NUT ,A 006846
507
WASHER , Replaced By: N000125010532
508
SEAL RING SPRING SHACKLE TO SPRING REAR BRACKET
510
PLATE , Replaced By: A6953257031
510
PLATE , Replaced By: A3833250031
510
SPRING CLAMPING PLATE , Replaced By: A3833250031
515
U-BOLT REAR SPRING TO REAR AXLE, NOT USED
515
U-BOLT REAR SPRING TO REAR AXLE
520
WASHER FRONT SPRINGS TO FRONT AXLE
525
NUT
999
SPRING LEAF , Replaced By: A3443200393
999
SPRING LEAF , Replaced By: A3443200293
999
SPRING LEAF NO.3,WITH SPRING CLAMP, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
SHACKLE PIN , Replaced By: A3413227130
