Поз.
Артикул
Описание
5

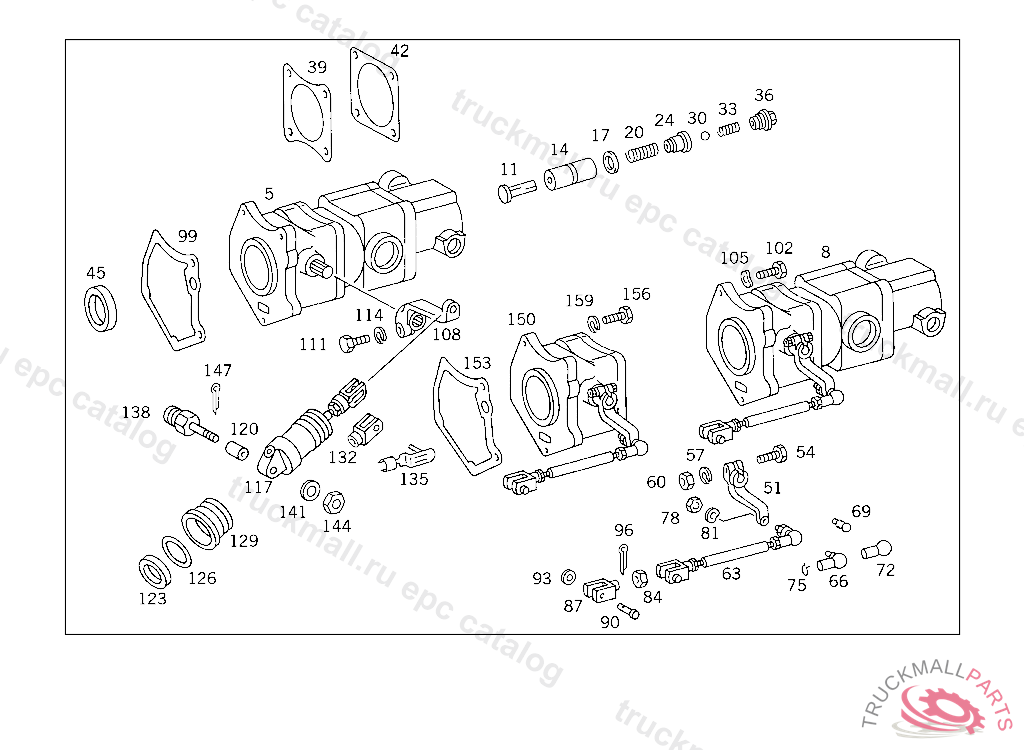

HYDRAULIC PUMP WITH CONTROL MECHANISM AND WITH LINKAGE TYP 266/13
11
VALVE
14
PISTON
17
SEAL RING
24
VALVE CHECK VALVE
30
BALL10 MM
36
SCREW PLUG
39
GASKET CASE PART I TO CASE PART II
42
GASKET CONNECTION FLANGE
45
SEAL RING
99
GASKET P.T.O. TO TRANSMISSION
99
GASKET , Replaced By: A3522611680
99
GASKET , Replaced By: A3522611980
99
GASKET COVER TO CASE REAR COVER
102
SCREW SHIFTING CYLINDER TO CASE
105
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
105
SPRING WASHER , Replaced By: N000137008212
108
LEVER ,4 315113, Replaced By: A3852641119, +001A0002602963
108
LEVER P.T.O. CONTROL,4 315114
111
SCREW , Replaced By: N304017008027
111
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
114
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
117
SHIFTING CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 315114, Replaced By: A0002602963
117
SHIFTING CYLINDER , Replaced By: A0002602963
117
SHIFTING CYLINDER P.T.O.
120
BUSHING
123
GROOVED RING
126
SEALING CORD
129
PROTECTIVE CAP
132
YOKE , Replaced By: A6209960001
132
YOKE OPERATING ROD,K 202311
135
PIN
135
PIN SHIFT LEVER TO PIVOT PIN
138
PIN SHIFTING CYLINDER TO TRANSMISSION CASE
141
WASHER RADIATOR TO RUBBER MOUNTING
141
WASHER , Replaced By: N000125010532
144
NUT BRACKET TO TELESCOPIC TUBE,K 142858
147
COTTER PINTO 345 460 94 05
999
SCREW PLUG , Replaced By: A0019974430
